Machinery

We have a range of machines for precision machining: automatic lathes, machining centres and pallet-changer milling machines. Below we list some of them with their technical specifications.

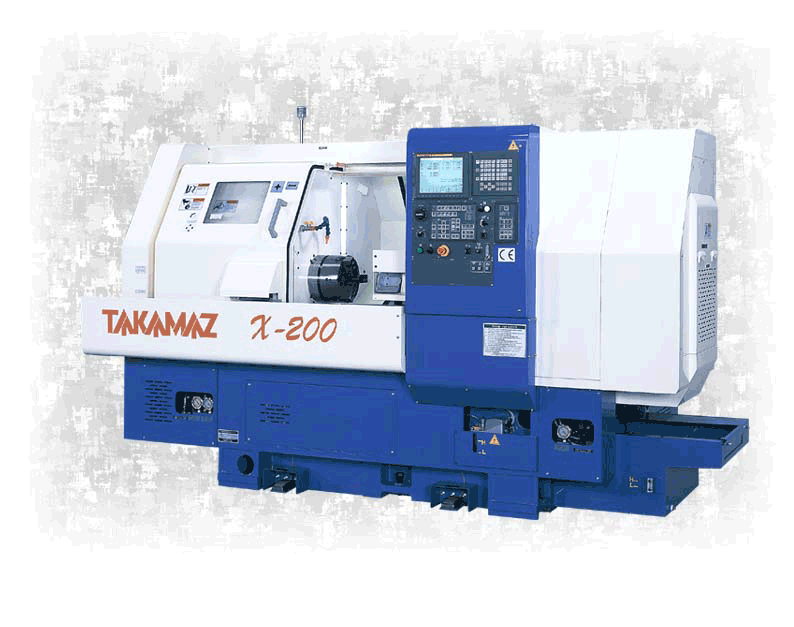

TAKAMAZ X-200 CNC lathe with sub-spindle and 12 stations, all live-tool capable

Technical data

Capacity: controlled axes 4 - max. turning diameter 340 mm - max. turning length 510 mm - max. bar Ø spindle/sub-spindle 51 (65) mm
Left spindle: chuck diameter 210 (254) mm - speed 5000 (4000) rpm - spindle nose ASA 6 (8) - AC motor power 15 (18.5) kW/30 min
Right spindle: chuck diameter 170 mm - speed 5000 rpm - spindle nose ASA 5 - AC motor power 7.5 kW/30 min
Upper automatic turret (left): 12 tools, all driven - driven tool speed 4000 rpm

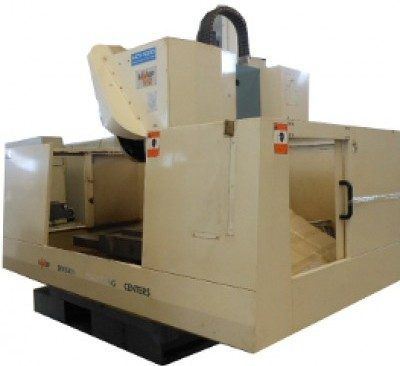

FAMUP vertical milling centre with 1000x500 mm travels

Technical data

FAMUP MCX1000 vertical machining centre with 3 controlled axes
FANUC 0M control unit, 24 tools
Working area 1000x600x600 mm

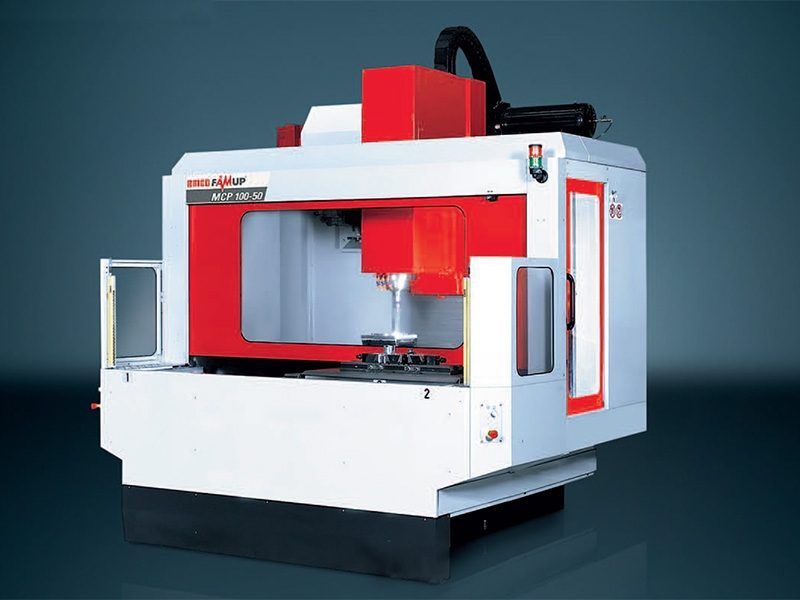

Emco Famup MC 100-50 pallet changer

Technical data

Electro-spindle 12,000 rpm - 35 kW (S6)
Table: working surface 1000x450 mm
Vertical travel, Z axis: 640 mm
Tool magazine capacity: 30 positions

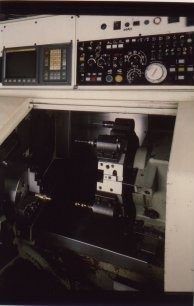

TAKISAWA CNC lathe with Ø 75 mm bar passage and turning up to Ø 300 mm

Technical data

Swing diameter: 540 mm - turning diameter: 330 mm
Bar passage: 75 mm - distance between centres: 510 mm
Spindle motor: 15 kW - spindle speed: 3200 rpm
Chuck: 250 mm - turret positions: 10
Tailstock in cycle: yes - control: FANUC 21 TB

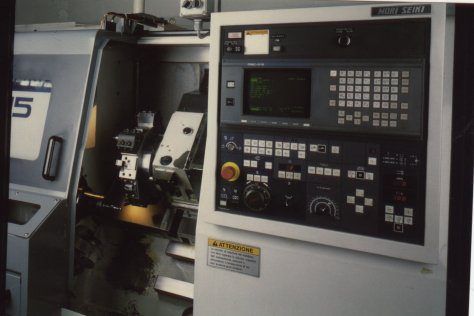

MORI SEIKI CNC lathe with automatic bar feeder, for bars up to Ø 42 mm

Technical data

Distance between centres 625 mm - simultaneous axes 2
Swing over cross slide 350 mm - over bed 520 mm - turning diameter 260 mm - turning length 550 mm - spindle bore 61 mm
Slide: longitudinal travel (Z axis) 590 mm - cross travel (X axis) 160 mm
Revolver turret: 1 - turret positions 1-12 - spindle taper fitting: VDI 40 - Ø 25 mm - Camlock A2-6 JIS
Spindle speed with continuously variable drive: from 42 to 4200 rpm
Feeds with continuously variable drive: longitudinal 0 to 12,000 mm/min - planetary 0 to 1500 mm/min
Connection 50 Hz 3x380 V - spindle motor 11 kW

In addition to the machines listed above, our workshop has other machines that are not shown on this page. Contact us to find out whether we have what your job requires.
